Normalization Node – Introduction

You will be able to scale numerical columns between 0 and 1.

Step 1: Once data is imported, click on transformation.

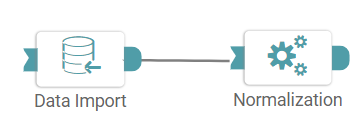

Step 2: Drag and drop the normalization node onto the main screen. Connect the two nodes. (Refer to the image below).

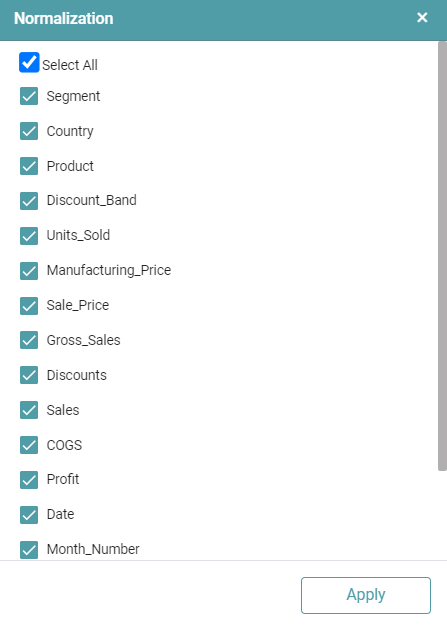

Step 3: Once a successful connection is made between ‘data import and normalization’, click on the select button. A pop-up appears with the columns present in the data.

Step 4: Now, you can choose the desired columns.

Step 5: Click on ‘Apply’. (Refer to the image below).

Step 6: Once the columns have been selected, click on the run button to run the workflow. Click on the “Show Results” on the bottom line to view the result.

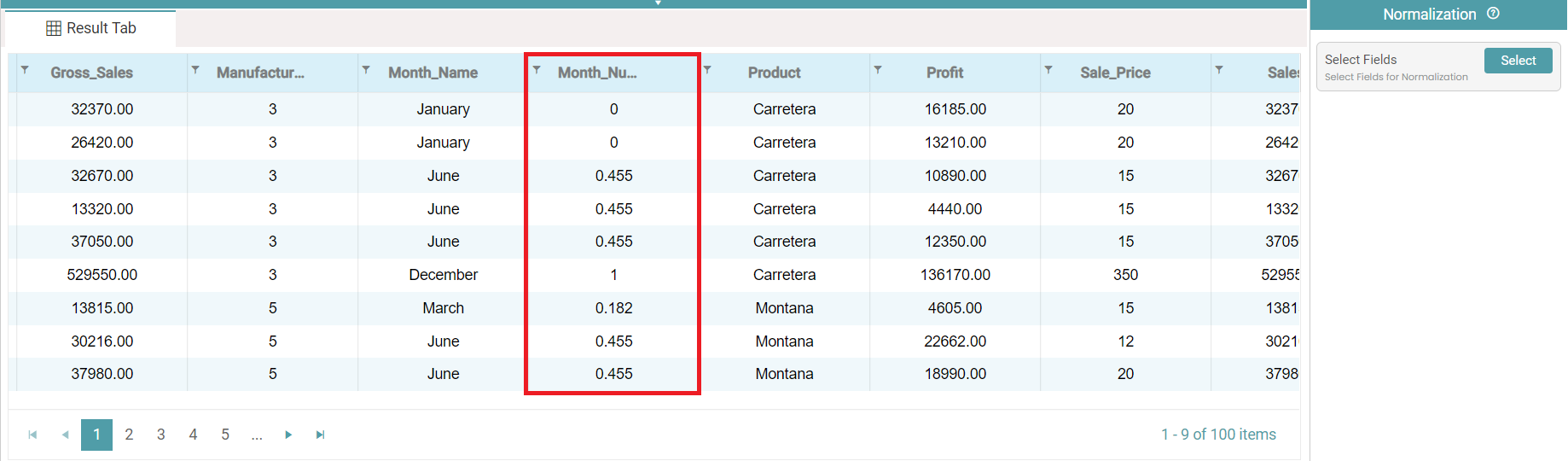

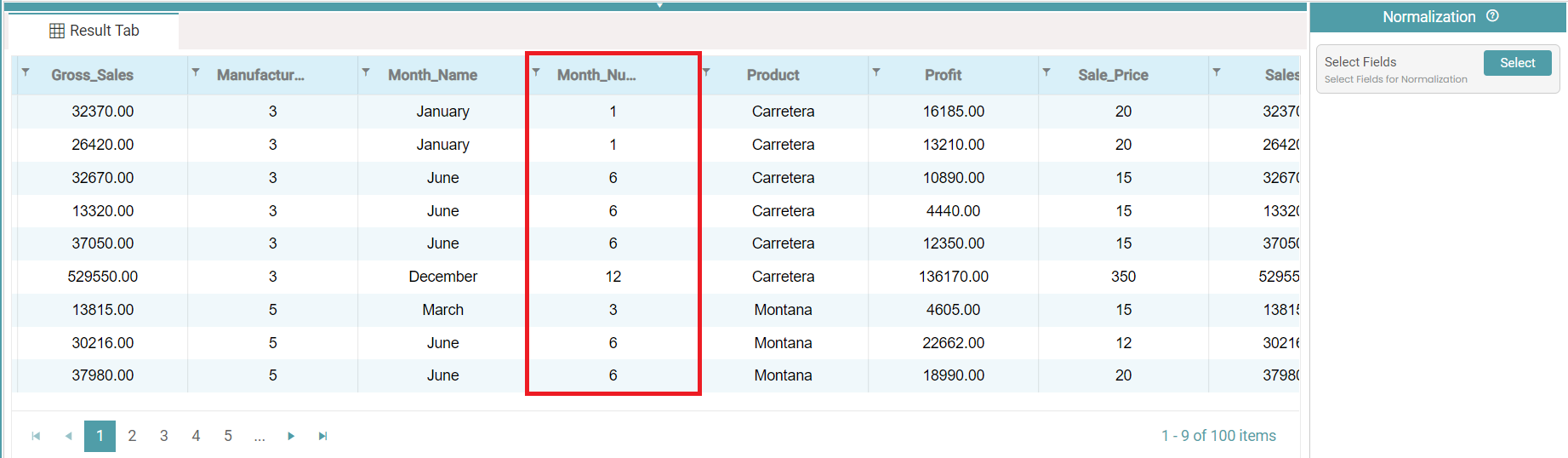

Step 7: The images of the before and after are given below. The Column selected to be normalized is “Month Number”. The data is reflected based on the operations selected. (Refer to the images below).

Note: After configuring a node, ensure you click “Save” to retain the changes. If you need to undo the configuration, click “Discard.” Failing to choose either “Save” or “Discard” will trigger a warning pop-up. (Refer to the image below).
